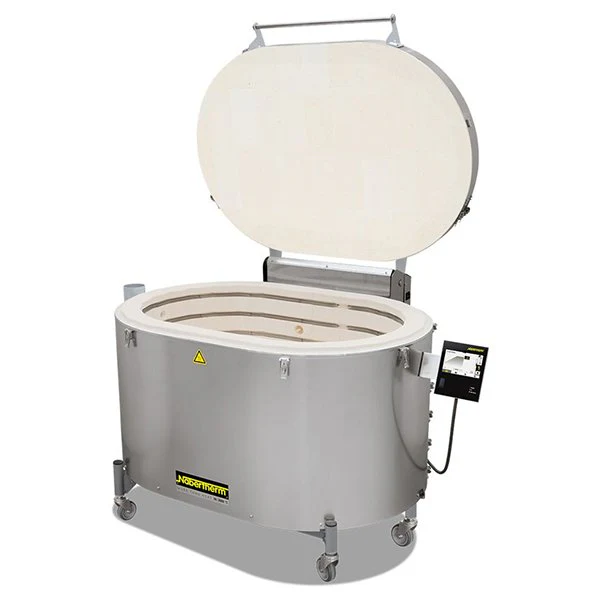

Nabertherm Top 220 Ceramic Kiln with Controller
Transform Your Ceramic Artistry with the Nabertherm Top 220 Kiln: Designed for High-Volume, High-Quality Output
Nabertherm Top 220 Ceramic Kiln Overview
Designed for the expansive needs of large pottery studios and educational facilities, the Nabertherm Top 220 offers a generous 220-litre capacity that can handle substantial batches of ceramic works. This model's bottom heating feature ensures even temperature distribution for optimal firing results. The sturdy build, combined with a versatile B500 controller and mobile base frame, makes it an ideal choice for busy environments that demand reliability and efficiency in their ceramic processing.
Nabertherm Top 220 Kiln Features
-
Next-Generation AC590 Touch Controller: Large high-contrast touch panel with intuitive operation, 24 selectable languages, and plain-text guidance for effortless and precise kiln management.
-
Wi-Fi & MyNabertherm App Connectivity: Monitor, adjust, and control your kiln remotely from your smartphone for full convenience and flexibility.
-
Graphical Firing Data & Smart Monitoring: Colored display of temperature curves, setpoint vs. actual values, program status with estimated end time/date, and USB export of firing data in .csv format.
-
Cone-Firing Assistant “Conny”: Step-by-step wizard simplifies cone firings with preheating, cone selection, speed, holding time, delayed start, and optional graphical preview.
-
Flexible & Programmable Firing: Store up to 50 programs with 40 segments each for fully customizable firing schedules.
-
Delayed Start & In-Program Adjustments: Schedule firings efficiently and adjust programs mid-cycle without interrupting the process.
-
Adjustable Segments & Skip Function: Precise control over the firing curve to achieve perfect results across different materials and techniques.
-
High-Temperature Capability: Fires up to 1320°C, suitable for a wide range of ceramic applications.
-

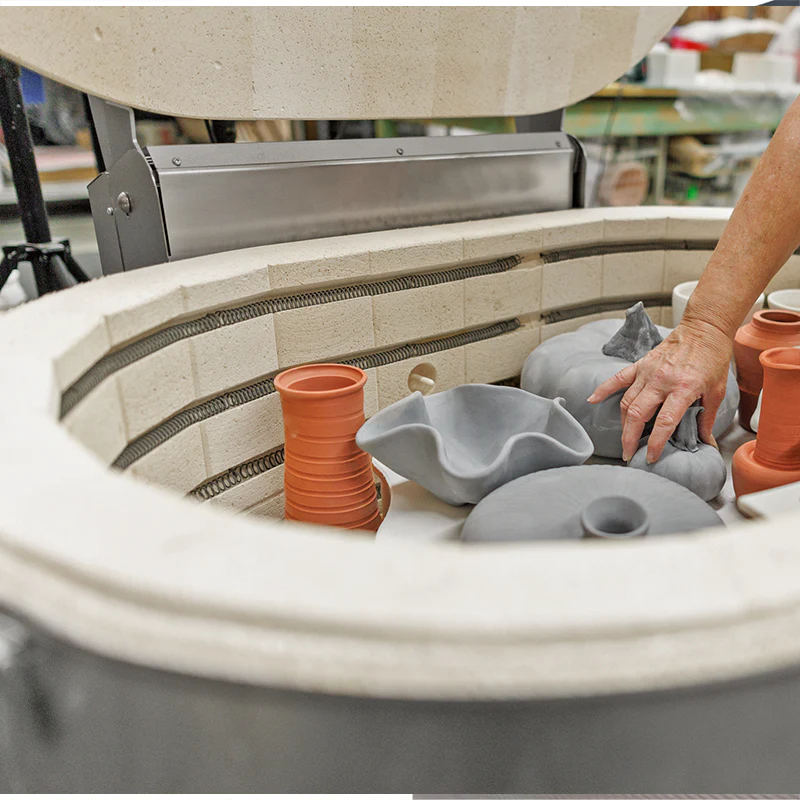

Durable Chamber & Heating Elements: Reliable performance with a spacious 220-liter chamber ideal for professional and large-scale projects.
Nabertherm Top 220 Kiln Specs
| Specs | Details |
|---|---|
| Capacity | 220 Litres |
| Controller | B500, upgradeable to C540 |
| Max Temperature | 1320°C |
| Plug Type | 3-phase only |
| Internal Dimensions | 930mm x 590mm x 460mm (WxDxH) |
| External Dimensions | 1120mm x 1050mm x 960mm (WxDxH) |
| Power Requirements | 400V 3/N/PE, 15.0kW, 21.7 amps per phase |
| CE Compliance | Yes |
| Minimum Distance from Wall | 50cm |
Nabertherm Top 220 Ceramic Kiln Manual
The manual for the Nabertherm Top 220 Ceramic Kiln is currently unavailable. Please contact customer support for further assistance.
