Gladstone G71 Tile Cutting Table – Precision Cutting System for G70 Extruder

A precision tile cutting table designed to pair with the Gladstone G70 Tile Extruder. Provides clean, consistent cuts for efficient extruded tile production.

---

The Gladstone G71 Tile Cutting Table is designed to complement the Gladstone G70 Tile Extruder, providing a complete workflow for producing high-quality extruded ceramic tiles. Ideal for studios, educational environments, and architectural ceramics production, the G71 ensures precise, repeatable tile cutting with operator-controlled accuracy.

Constructed with a robust electrically welded box frame, the table offers a stable and durable platform suitable for repeated clay handling. The formica tabletop provides a hard-wearing, smooth surface to maintain consistent tile handling.

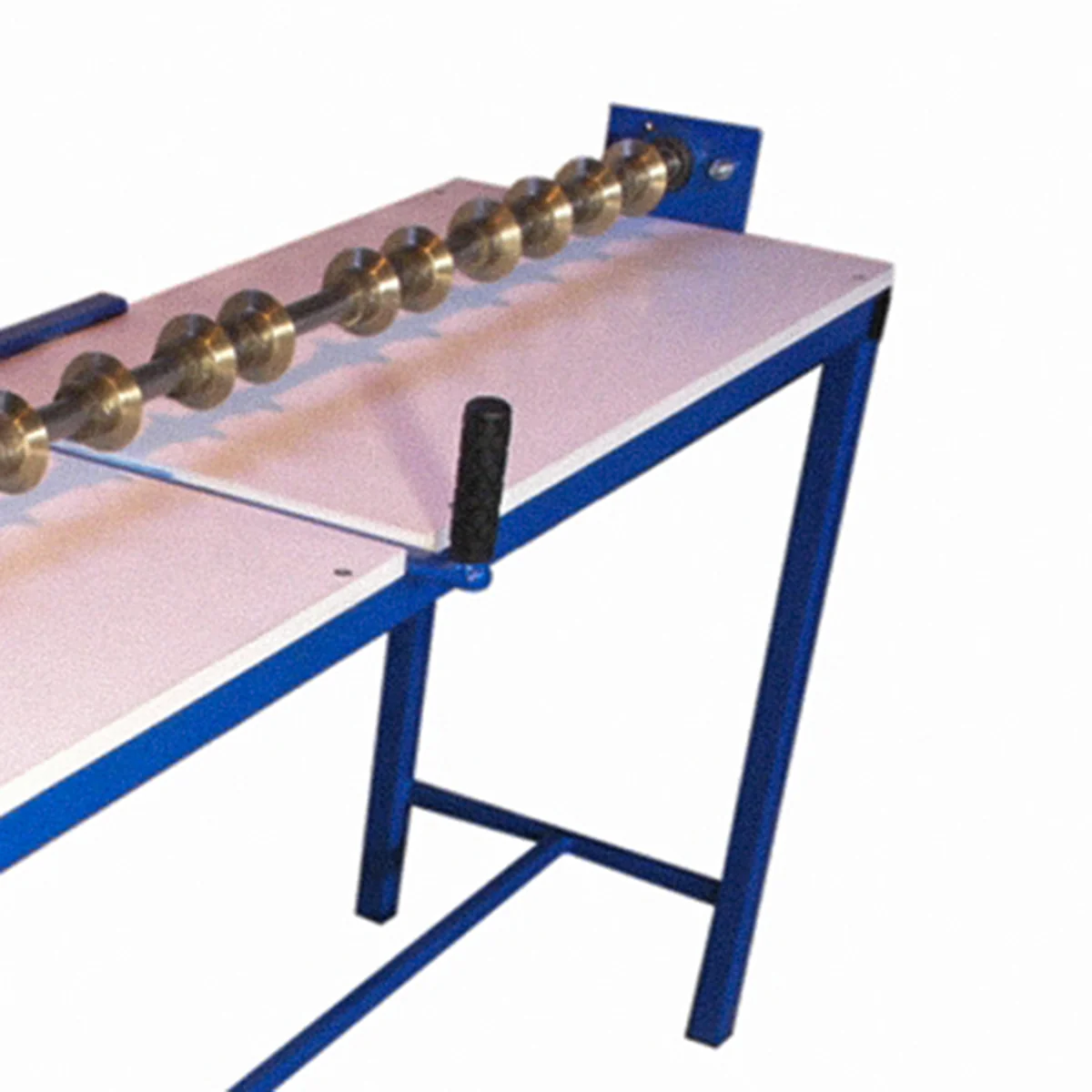

At the core of the system is a central rotary shaft mounted on sealed roller bearings, allowing adjustable vertical movement for different tile thicknesses. Mounted to this shaft are sixteen precision-machined phosphor bronze cutting discs, designed to deliver clean, uniform cuts across extruded clay slabs.

Operation is simple and efficient. As the wareboard is pulled using the integrated lever mechanism, the rotating cutting discs pass through the clay at a pre-set depth, producing consistently sized tiles with minimal effort. This precision helps reduce inconsistencies and speeds up production, making the G71 ideal for studios producing tiles at scale.

Built specifically to complement the Gladstone G70, the G71 enhances workflow efficiency and output consistency. UK-manufactured and built for durability, it is a reliable solution for studios requiring professional tile cutting performance.

---

Key Features

• Precision tile cutting table designed for G70 workflows

• Electrically welded box frame for durability and stability

• Hard-wearing formica tabletop

• Central rotary shaft with sealed roller bearings

• Adjustable cutting depth for different tile thicknesses

• Sixteen phosphor bronze cutting discs for clean cuts

• Lever-operated mechanism for smooth operation

• UK-manufactured professional equipment

---

Specifications

---

Who It’s For

• Tile production studios

• Architectural ceramics workshops

• Colleges and training institutions

• Production environments using G70 extruders

• Studios seeking consistent tile sizing

---

For studios producing extruded ceramic tiles, the Gladstone G71 Tile Cutting Table provides precise, repeatable performance, helping maintain workflow efficiency and professional-quality results.
