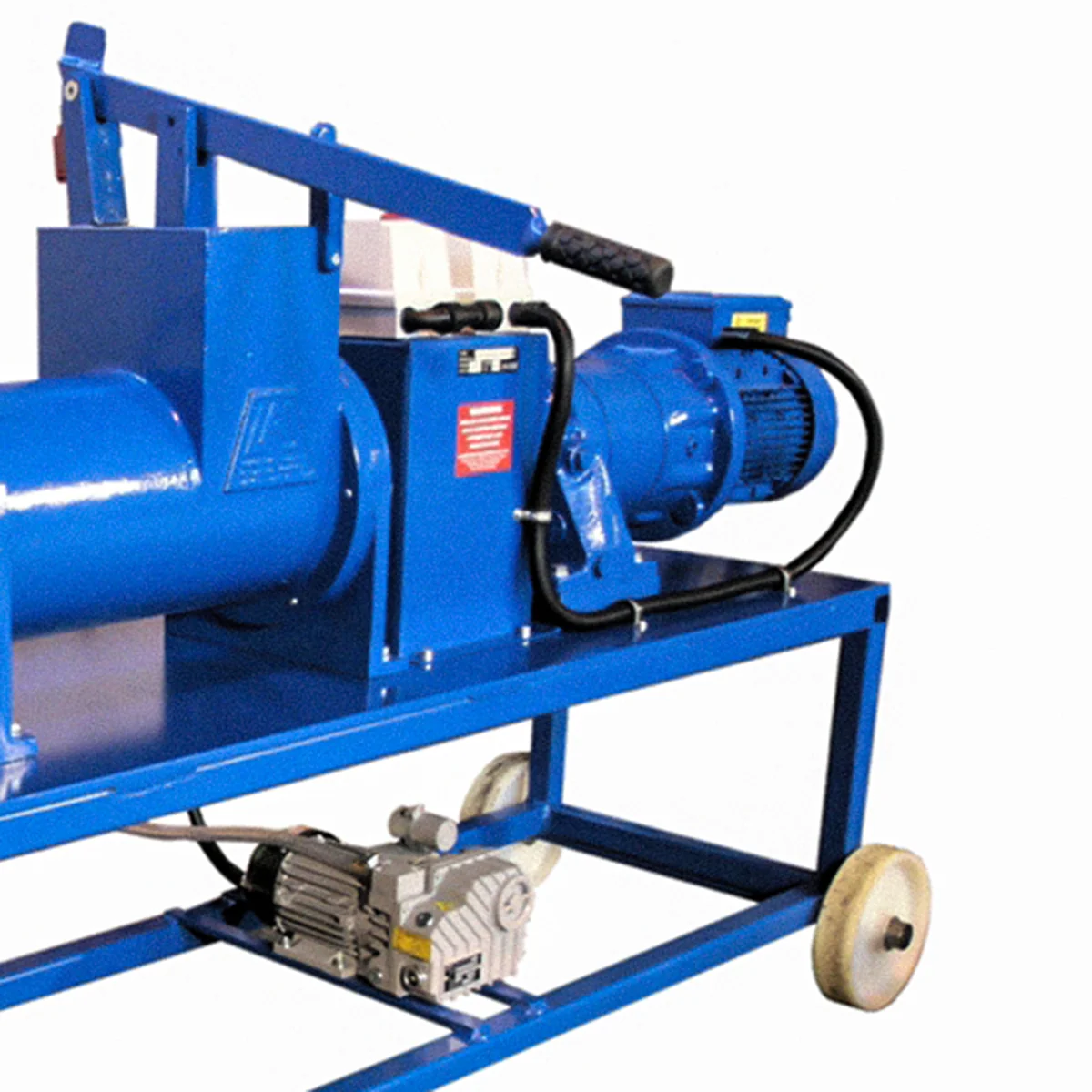

Gladstone G70 Tile Extruder
Gladstone G70 Tile Extruder – Precision Extrusion for Tiles and Mouldings
A versatile and efficient tile extruder designed for precise clay extrusion. Ideal for tiles, mouldings, coils, and hollow forms in small studios and production environments.
The Gladstone G70 Tile Extruder is a professional-grade extrusion machine engineered for precision and versatility. Purpose-built for small clay manufacturers, studios, and educational environments, the G70 allows artists and technicians to create consistent tiles, mouldings, coils, and hollow forms with ease and control.
Equipped with a high-torque 2.2 kW motor and reduction drive gearbox, the G70 delivers reliable, powerful extrusion. The 100 mm nose cone is standard for tile production, while optional die plates allow the creation of various shapes, including hollow forms. This flexibility makes the G70 suitable for a wide range of production requirements, from architectural tiles to decorative clay mouldings.
The extruder’s newly designed nose cone outlet can produce tiles up to approximately 280 mm wide and 25 mm thick. For smaller or thinner tiles, accessory die plates can be fitted, offering complete control over product dimensions. Fine-tuning is facilitated by variable blades and additional optional extras, allowing precise control over clay flow and extrusion consistency.
Built for usability and maintenance, the G70 features a split body design, making cleaning and access straightforward. Its durable cast aluminium barrel and powder-coated finish ensure long-term reliability, while optional upgrades like variable speed control and stainless steel components further enhance performance.
The Gladstone G70 is the core of a professional tile production workflow and pairs seamlessly with the G71 Tile Cutting Table and G72 Extruding Table, creating an efficient, end-to-end system for clay extrusion and tile production.
Key Features
-
Versatile extrusion: tiles, mouldings, coils, and hollow forms with optional die plates
-
High-torque 2.2 kW motor with reduction drive gearbox for efficient operation
-
Customizable output: variable blades for fine-tuning extrusion
-
Standard 100 mm nose cone; optional die plates for varied shapes
-
Easy maintenance: split body design for straightforward cleaning
-
Durable construction: cast aluminium barrel and powder-coated finish
-
Optional extras: variable speed control, stainless steel pack
Specifications
| Feature | Detail |
|---|---|
| Model | G70 |
| Delivery Weight | 270 kg |
| Drive Motor | 2.2 kW (3 Hp) reduction drive gearbox, 230V single / 400V three phase |
| Vacuum Pump | High-volume oil immersed |
| Output | ~500 kg/h; with tile nose cone approx. 60–80 sq ft/h |
| Dimensions (mm) | 1905 L Ă— 690 W Ă— 1050 H |
| Construction | Cast aluminium 200 mm barrel, 100 mm tile nose cone; split body for cleaning |
| Optional Extras | Variable speed control, stainless steel pack |
| Finish | Powder-coated durable surface |
| Use Case | Tile, moulding, coil, and hollow form extrusion |
Who It’s For
-
Small clay manufacturers
-
Tile production studios
-
Architectural ceramics workshops
-
Colleges and training institutions
-
Studios seeking professional extrusion control
For studios and small manufacturers requiring precise, versatile extrusion, the Gladstone G70 Tile Extruder delivers consistent results and reliable performance. It forms the backbone of a complete production workflow when paired with the G71 Cutting Table and G72 Extruding Table.
Original: $16,418.33
-70%$16,418.33
$4,925.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Gladstone G70 Tile Extruder – Precision Extrusion for Tiles and Mouldings
A versatile and efficient tile extruder designed for precise clay extrusion. Ideal for tiles, mouldings, coils, and hollow forms in small studios and production environments.
The Gladstone G70 Tile Extruder is a professional-grade extrusion machine engineered for precision and versatility. Purpose-built for small clay manufacturers, studios, and educational environments, the G70 allows artists and technicians to create consistent tiles, mouldings, coils, and hollow forms with ease and control.
Equipped with a high-torque 2.2 kW motor and reduction drive gearbox, the G70 delivers reliable, powerful extrusion. The 100 mm nose cone is standard for tile production, while optional die plates allow the creation of various shapes, including hollow forms. This flexibility makes the G70 suitable for a wide range of production requirements, from architectural tiles to decorative clay mouldings.
The extruder’s newly designed nose cone outlet can produce tiles up to approximately 280 mm wide and 25 mm thick. For smaller or thinner tiles, accessory die plates can be fitted, offering complete control over product dimensions. Fine-tuning is facilitated by variable blades and additional optional extras, allowing precise control over clay flow and extrusion consistency.
Built for usability and maintenance, the G70 features a split body design, making cleaning and access straightforward. Its durable cast aluminium barrel and powder-coated finish ensure long-term reliability, while optional upgrades like variable speed control and stainless steel components further enhance performance.
The Gladstone G70 is the core of a professional tile production workflow and pairs seamlessly with the G71 Tile Cutting Table and G72 Extruding Table, creating an efficient, end-to-end system for clay extrusion and tile production.
Key Features
-
Versatile extrusion: tiles, mouldings, coils, and hollow forms with optional die plates
-
High-torque 2.2 kW motor with reduction drive gearbox for efficient operation
-
Customizable output: variable blades for fine-tuning extrusion
-
Standard 100 mm nose cone; optional die plates for varied shapes
-
Easy maintenance: split body design for straightforward cleaning
-
Durable construction: cast aluminium barrel and powder-coated finish
-
Optional extras: variable speed control, stainless steel pack
Specifications
| Feature | Detail |
|---|---|
| Model | G70 |
| Delivery Weight | 270 kg |
| Drive Motor | 2.2 kW (3 Hp) reduction drive gearbox, 230V single / 400V three phase |
| Vacuum Pump | High-volume oil immersed |
| Output | ~500 kg/h; with tile nose cone approx. 60–80 sq ft/h |
| Dimensions (mm) | 1905 L Ă— 690 W Ă— 1050 H |
| Construction | Cast aluminium 200 mm barrel, 100 mm tile nose cone; split body for cleaning |
| Optional Extras | Variable speed control, stainless steel pack |
| Finish | Powder-coated durable surface |
| Use Case | Tile, moulding, coil, and hollow form extrusion |
Who It’s For
-
Small clay manufacturers
-
Tile production studios
-
Architectural ceramics workshops
-
Colleges and training institutions
-
Studios seeking professional extrusion control
For studios and small manufacturers requiring precise, versatile extrusion, the Gladstone G70 Tile Extruder delivers consistent results and reliable performance. It forms the backbone of a complete production workflow when paired with the G71 Cutting Table and G72 Extruding Table.
