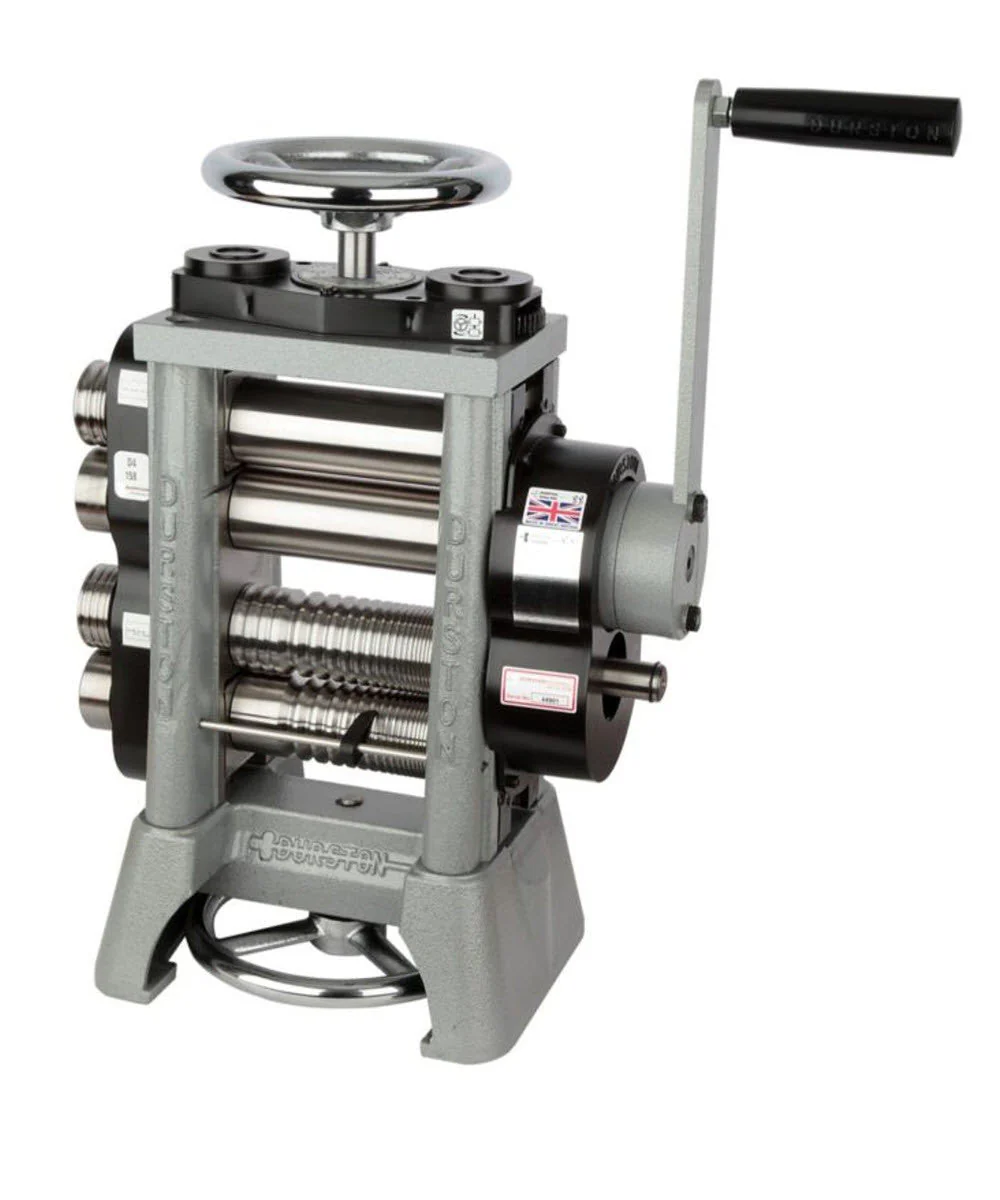

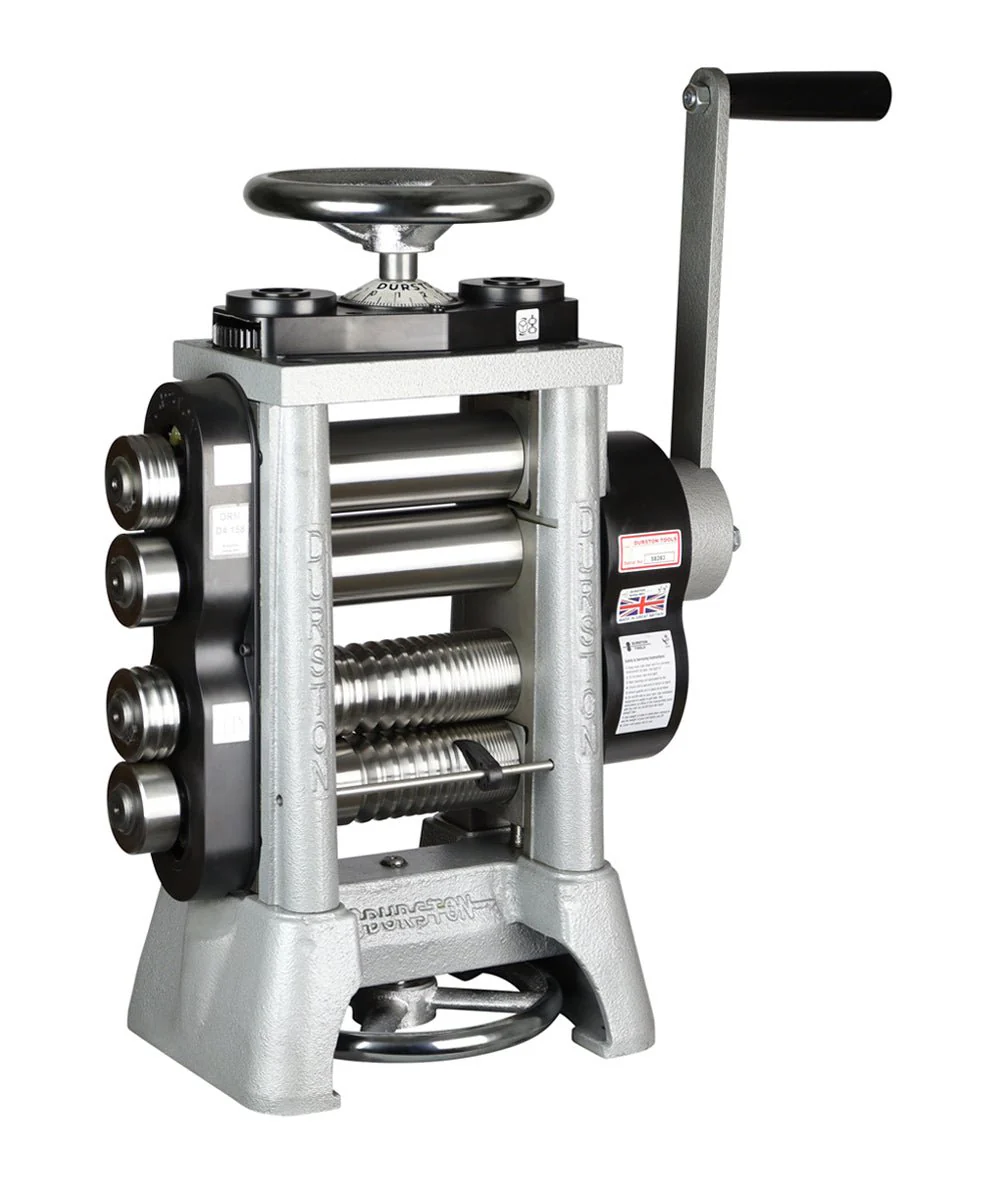

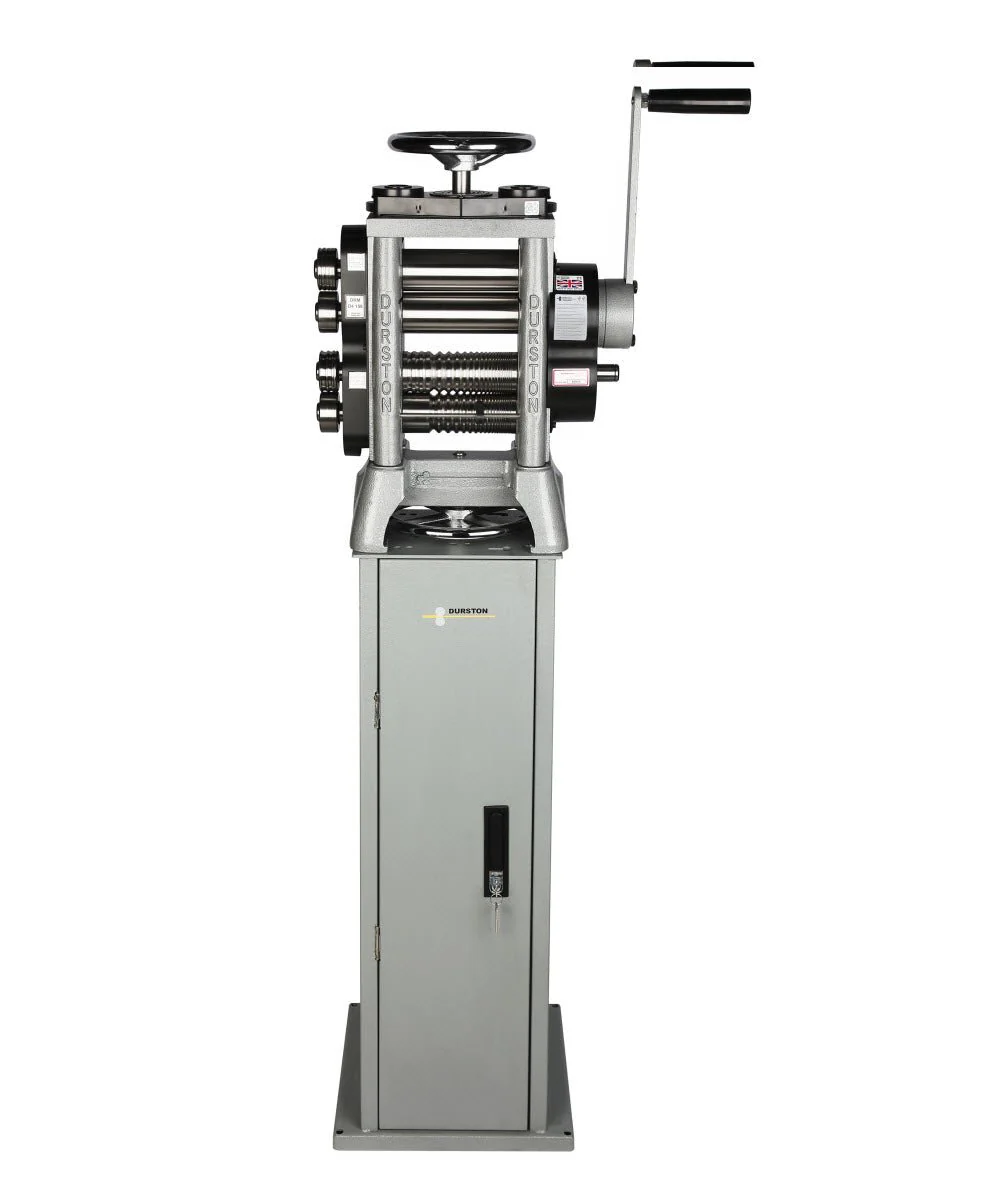

Introducing the Double D4 Rolling Mill from Durston Tools—a masterpiece of design and functionality, tailored for the passionate jeweler.

Key Features:

• Dual Rolling Sets: Top set for flat rolling and a grooved bottom set for square wire rolling, both complemented with extension rollers for added versatility.
• Versatility at Its Best: Top rolls feature four half rounds, and the bottom rolls come with three additional half rounds. The mill is equipped with two turning levers, offering gear reductions of 11-1 for heavy rolling and 5-1 for lighter tasks.
• Expansive Rolling Surface: A generous flat area of 158mm between two 60mm diameter rollers, accommodating a maximum roll thickness of 6mm. The bottom mill boasts 19 square wire grooves, ranging from 10mm to 1mm, and side extensions for half round rolling in eight sizes.
• Safety and Robustness: Prioritizing safety, all gears are encased in protective plastic housing. The mill's single cast iron construction ensures maximum strength, and the rollers, hardened to 64 RC, promise durability.

Specifications:

• Flat Area: 158mm
• Roller Diameter: 60mm
• Max Roll Thickness: 6mm
• Square Wire Grooves: 19 (10mm to 1mm)
• Half Round Sizes: 8, 7, 6, 5, 4, 3, 2, 1.5mm
• Gear Ratios: 11-1 (heavy rolling) and 5-1 (light rolling)

The Double D4 Rolling Mill is more than just a tool—it's a partner in your creative journey. Dive into a world where precision meets passion, where every roll translates to perfection, and where your creativity knows no bounds. Join the Durston family and let your jewelry-making endeavors shine with the Double D4 Rolling Mill. Elevate your craft and redefine excellence.
